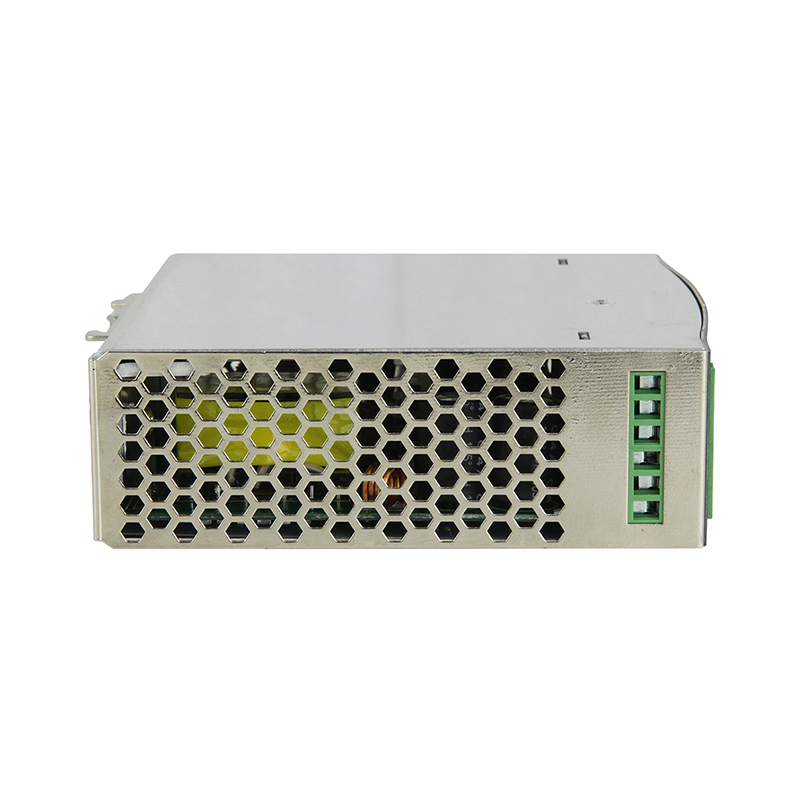

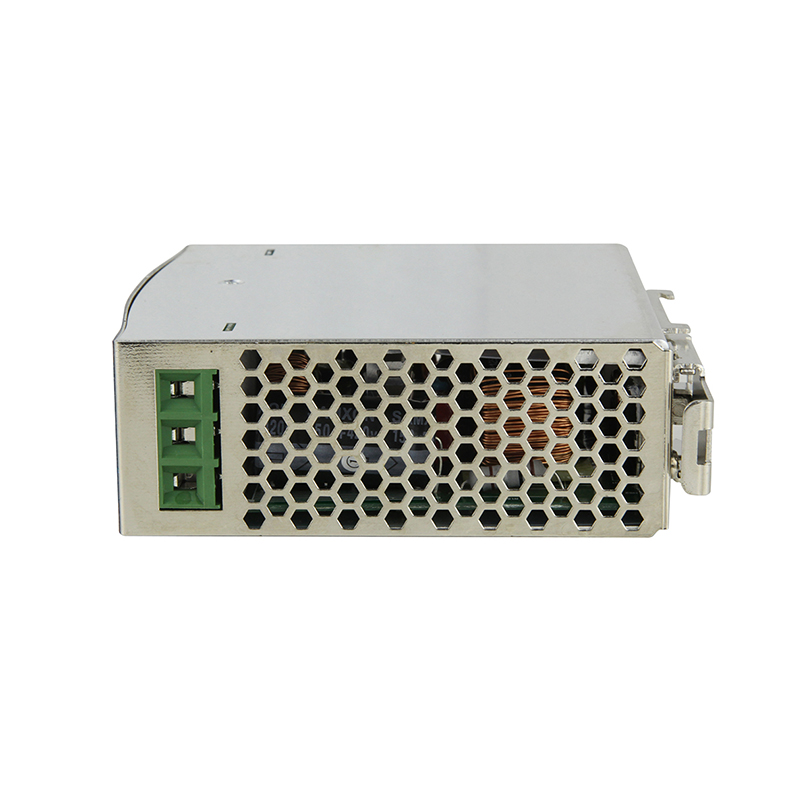

Model

GWS-DP120-48

Output

Group of Output

1

DC Voltage

48VDC

Output Voltage Factory Setting

48.00-48.2VDC (Vin: 220Vac / Load: 0A)

Output Rated Current

2.5A

Output Current Range

0-2.5A

Rated Output Power

120W

Total Peak Output Power

180W (sustainable time 10S/220VAC)

Peak Output Current

3.7A (sustainable time 10S/220VAC)

Ripple Noise

Peak-to-peak value ≤100mV. (Measurement method: The terminal should be connected in parallel with 0.1uF and 47uF capacitors, and the measurement should be performed at a bandwidth of 20MHz)

Output Voltage Range

47-56VDC

Stabilized Voltage Precision

±1% (@ 90-264VAC input, 100% load)

Line Regulation

±0.5% (@ 90-264VAC input, 100% load)

Load Regulation

±1% (@90-264VAC input, 0-100% load)

Output Start Time

<2S @ nominal input (100% load )

Output Hold Time

>20ms @ 115VAC, >50ms @ 230VAC (100% load )

Voltage Overshoot

≤5.0%

Input

Input Voltage Range

90-264VAC

Input Rated Voltage Range

100-240VAC

Frequency Range

47Hz-63Hz

Rated Frequency

50Hz/60Hz

Starting Voltage

90VAC

Efficiency

>90.0% @115VAC, >91.0% @ 230VAC

Input Current

<2.20A @115VAC, <1.10A @ 230VAC

Start Inrush Current

<35A @ 115VAC& 230VAC

Power Factor

>0.99 @ 115VAC, >0.93 @ 230VAC

Protection

Output Over Power

144-180W Swing machine (Testing method: Increase the output current until enabling the protection. Protection mode:Swing machine, Self-recovery after over-power released.)

Output Over Voltage

57-70V Swing machine (Short circuit the Pin1-2 of U8, swing machine. Output recovery to normal after removing the short circuit) Note: Do not use external voltage.

Output Over Current

3-3.75A Swing machine (Testing method: Increase the output current until enabling the protection. Protection mode:Swing machine, Self-recovery after over-current released.)

Output Short Circuit

Use a copper wire with a sufficient cross-sectional area and a length of 15cm±5cm to directly short-circuit at the power output port, which can be short-circuited for a long time, and can be automatically restored after the short-circuit is eliminated.

Operation Environment

Operation TEMP/ Humidity

-40℃ to 85℃, 20%-95%RH No condensing

Storage TEMP/ Humidity

-40℃ to 85℃, 10%-95%RH No condensing

Temperature Coefficient

±0.03%/℃ (0-50℃)

Vibration

Frequency range 10-500Hz, acceleration 2G, each sweep cycle 10min. 6 sweep cycles along the X, Y, and Z axes

Impact

Acceleration 20G, duration 11ms, 3 shocks along X, Y, and Z axis each

Altitude

2000m

Safety and Electromagnetic Compatibility Standard

Security Standard

GB4943/EN62368-1 ■Reference □Certification

Dielectric Strength

Input—Output: 3KVAC/10mA, Input--Case:1.5KVAC/10mA

Output---Case: 0.5KVDC/10mA , Time for each testing is 1min.

Ground Test

Test conditions: 32A/2 minutes, Ground impedance: <0.1 ohms.

Leakage Current

Input to ground ≤3.5mA, Input to output ≤0.25mA (Input 264VAC, Frequency 63Hz)

Insulation Resistance

Input-Output: 10M ohms

Conducted Disturbance

EN55022, EN55024, FCC PART 15 Class B

Radiated Interference

EN55022, EN55024, FCC PART 15 Class B

Harmaonic Current

EN61000-3-2 Class D

Conducted Disturbance

EN61000-4-6 Level 3

Radiation Harassment

EN61000-4-3 Level 3 Class B

Power Frequency Harassment

EN61000-4-8 Level 3

Static Harassment

EN61000-4-2 Level 4 Class B

Fast Burst

EN61000-4-4 Level 4 Class B

Lightning Strike (Surge)

EN61000-4-5 Level 4 Class B

Interrupted Fall

EN61000-4-11

Others

Dimension

135*121*40mm

Warranty

5 years
